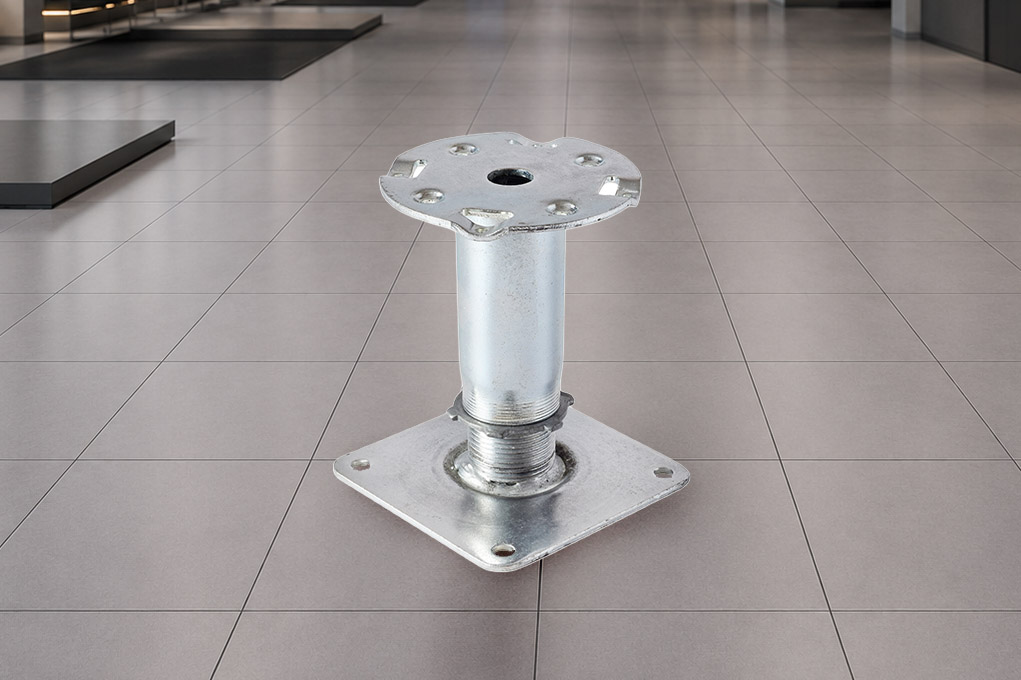

The mighty Heavy Grade pedestal, engineered for projects where maximum strength, stability, and reliability are essential. Built to withstand demanding loads and challenging site conditions, they provide the robust foundation required for high-performance raised access flooring systems. X Range is manufactured to order, allowing us to tailor any detail to your exact project specifications whenever required.
Available in an extensive range of void heights, these pedestals offer the flexibility needed to accommodate complex, heavy layouts. Whether you’re working on large commercial developments, data centres, or specialist environments, the X Range delivers consistent, dependable performance where it matters most.
Available in Zinc Whisker free finish upon request.
- Specification – PSA MOB PF2 PS/SPU
- Heavy Grade pedestal for maximum strength, stability, and reliability

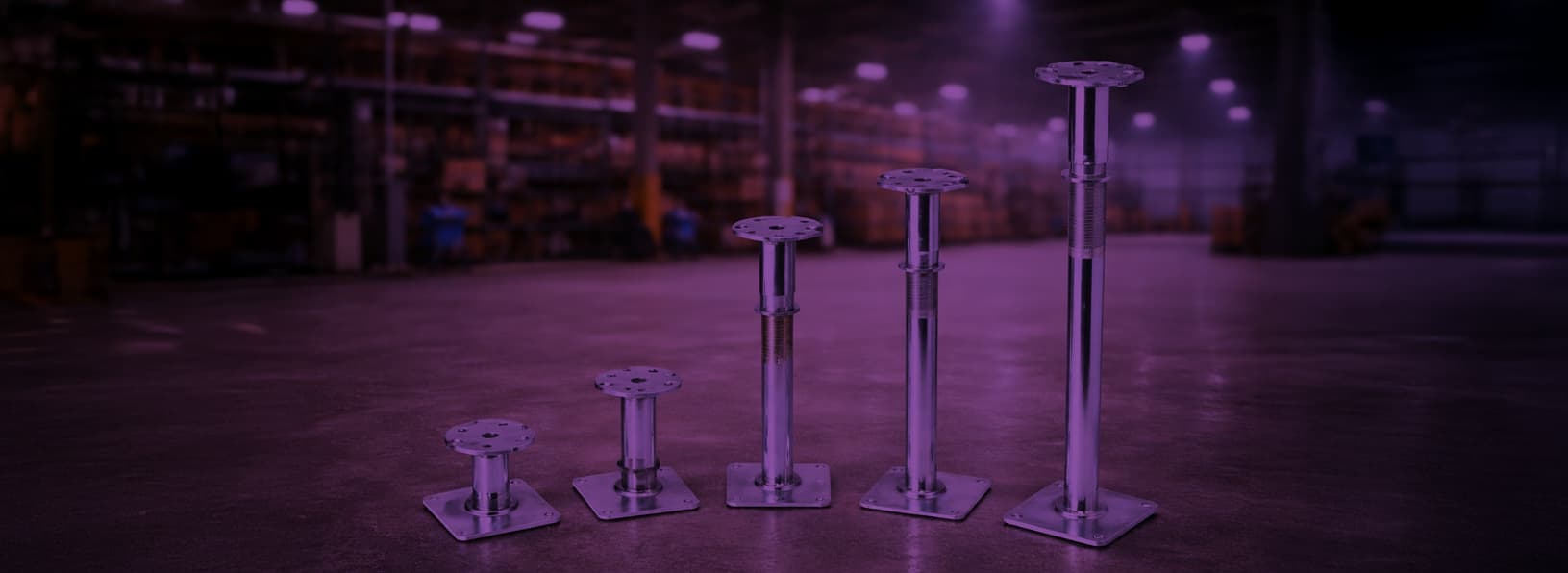

- Void ranges – 75mm – 1525mm
- Manufactured to order for exact project specifications
- Loose lay stringer compatible – As standard
- Screwdown stringer compatible – As standard
- Extensive range of void heights for complex heavy layouts
- Consistent, dependable performance in demanding environments
- 50 year warranty

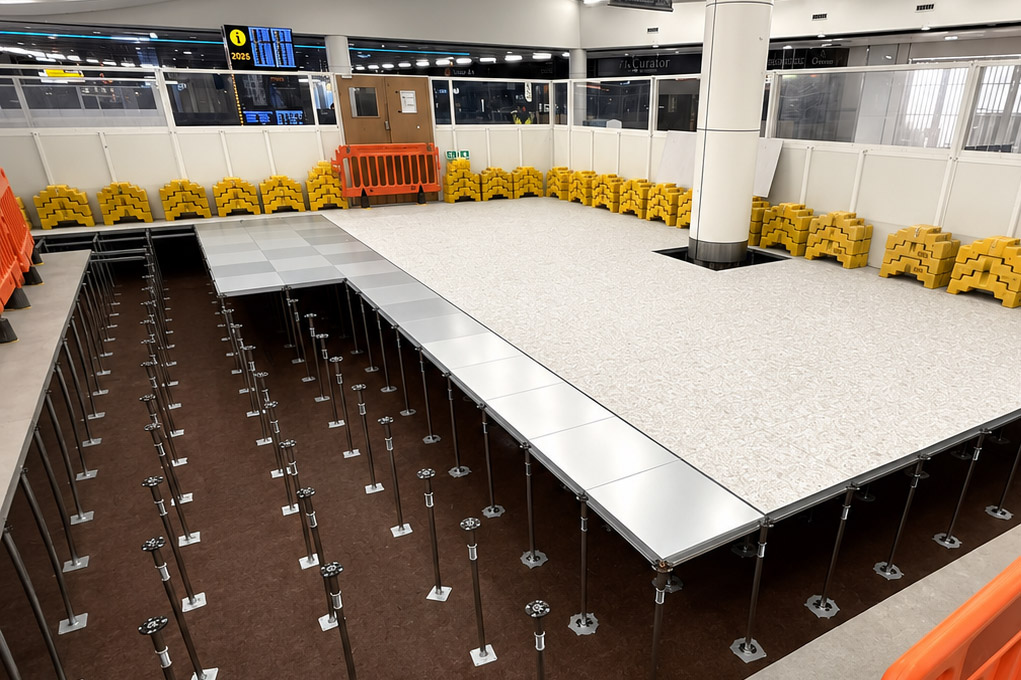

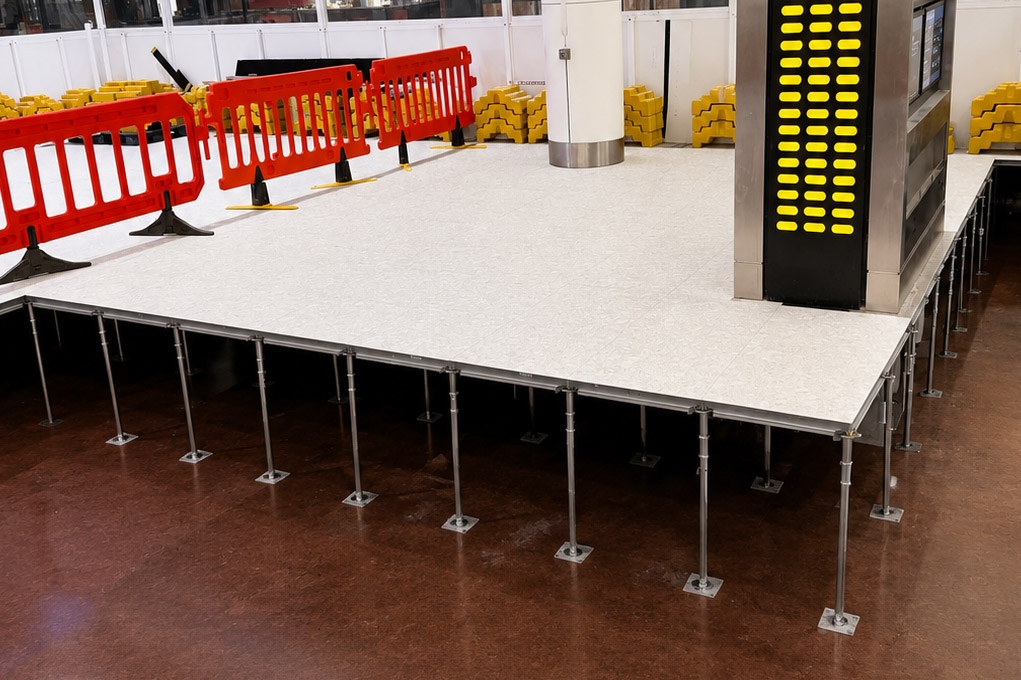

- Data centres and print rooms
- Airports and service corridors

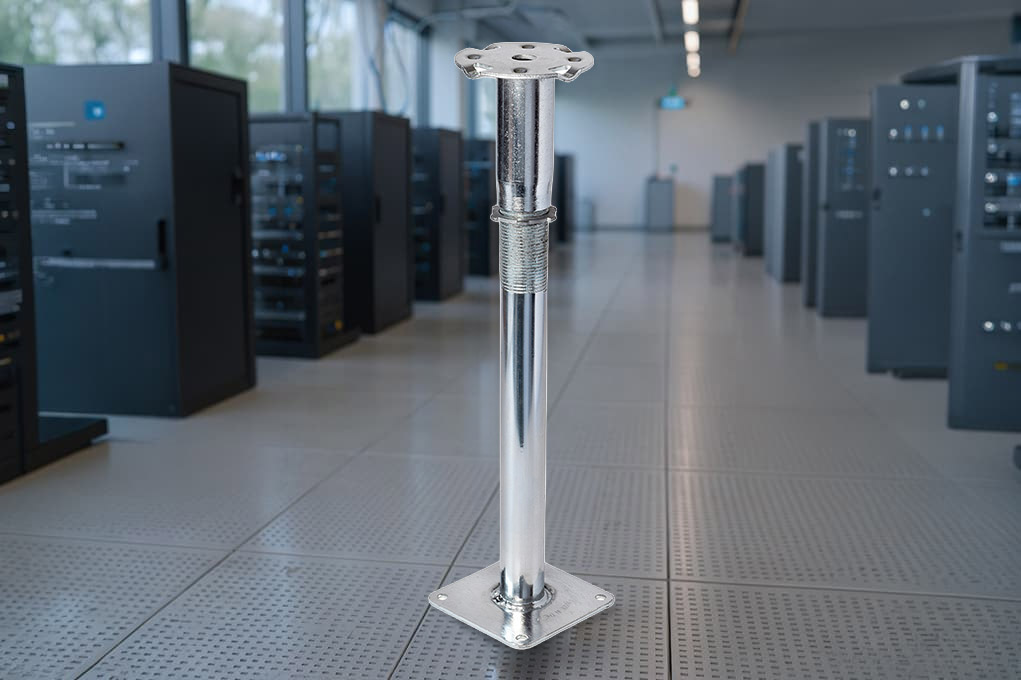

- Computer rooms
- Communication rooms
- Stages and large ramps
- Zinc-plated, finest quality steel material
- 90mm mild steel top disc for screw-down systems
- Heavy-duty base plate – in-house rolled thread
- Precision tube length for accurate levelling
- 3mm steel locking nuts – improved stability
Every X-Range pedestal is manufactured in-house to exacting tolerances, built for the most demanding raised access flooring environments.
For more than 160 years, Isaac H Grainger & Son Ltd has been recognised for manufacturing products that combine durability, precision and long-term reliability. Every product is designed and manufactured to meet the high standards expected by contractors, specifiers and end users who require dependable performance from the materials they install. Using quality raw materials and proven manufacturing processes, our products are engineered to withstand the demands of busy commercial, industrial and public environments. Consistency is a key part of our approach, ensuring customers receive products that deliver the same high level of performance project after project. Extensive manufacturing experience, continuous product development and rigorous testing enable us to supply solutions that offer strength, stability and longevity across a wide range of applications.
Third Party Certifications Include:
