Our exclusive ranges of bespoke manufactured products.

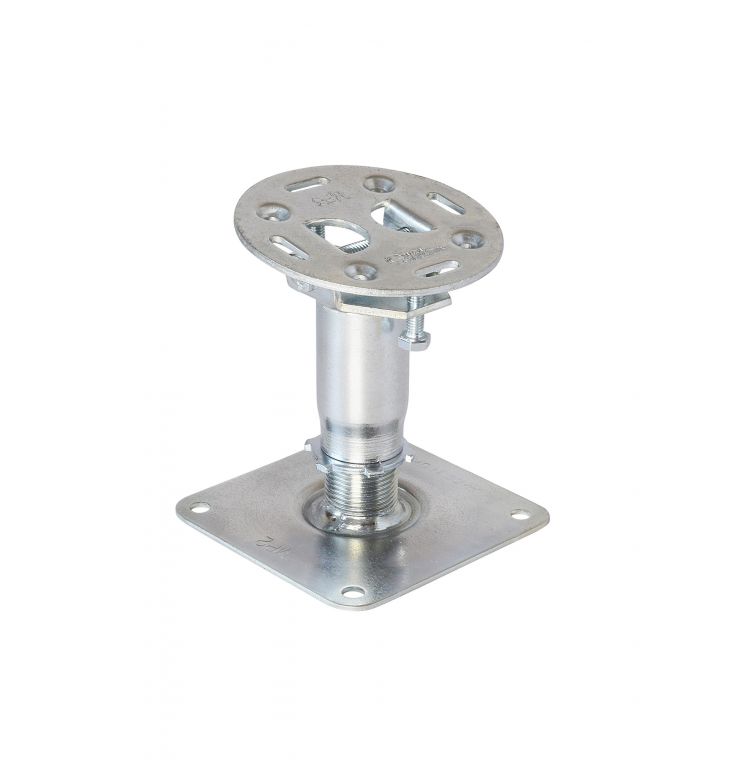

Ramp Pedestal Range

Our ‘Ramp Head’ Range of pedestals have been designed to meet the demanding requirements of the PSA MOB PF2 PS/PU: March 1992 specification. Designed to allow quick and easy installation of ramps. While meeting the highest fire regulations, class A fire rated ramp pedestal. Providing a safe and secure solutions for wheelchair uses in the case of emergency. Can be used in conjunction with our H and X Range pedestal range and are manufactured to our standard range of heights from 40mm up to 1525mm plus generous adjustments with a small overlap between heights. We endeavour to carry stock of these heights in moderate quantities, however special height ranges are available if sufficient quantities justify special production. Can be adjusted to meet any requirements.

Cantilever Pedestal Range

Our perimeter products can be adjusted to meet any requirements. Designed to bridge difficult floor spaces. Supporting panels that fit comfortably up to perimeter walls or around objects. Can be used in conjunction with our H and X Range pedestal range. Ask us for more information.

Astec 3000 Finish

Providing you with bespoke protection for your product. A Grainger's exclusive finish. The ultimate corrosion protection for our products. An additional electroplated coating which is designed to resist all elements. The most hard wearing and scratch resistant protection there is. A more environmentally friendly and whisker free option. For more information please see our finishes information section. Saving the environment isn’t always pretty.

Please allow a minimum 3 week lead time for manufacture of special products. These products are made to order. We will always endeavour to have shorter lead times.

This would include jobs for:

  • X Range
  • Ramp Pedestals
  • Astec or special finish jobs
  • Cantilever
Grainger's Ramp Head Pedestal H3EGrainger's Ramp Head Pedestal H6Grainger's Ramp Head Pedestal H5EGrainger's Ramp Head Close UpGrainger's Ramp Head Close Up- Side ViewGrainger's Ramp Head GroupGrainger's Ramp Head In LineGrainger's Cantilever Perimeter PedestalGrainger's Astec 3000 Finish H3 Screw Down
