Medium grade pedestal. A lighter grade pedestal, designed to meet the euro grade specifications. Typically used in light weight offices.

Our ‘M’ Range of pedestals have been designed to meet the demanding requirements of the BS EN 12825:2001 specification, euro grade and has been tested to class 3 (see test report) in conjunction with a variety of panels.

Fully compatible with screw-down panel.

Features and benefits:

  • Fully compatible with screw-down panels
  • Adjustable height ranges
  • Quick installation
  • High strength and rigidity
  • Special finishes including the bespoke Astec 3000 finish are available to give protection against zinc whiskers

Third Party Certifications Include:

ISO QualityEPD CertifiedISO Envrionmental


Applications include:

  • TickBSEN specified projects and Euro grade class 3
  • TickCat B office projects-light loads-ready to move into (fitted with kitchens, utilities)
  • TickReception areas
  • TickEducational purposes
  • TickCall centres


Isaac H Grainger's are partners with NBS, which means you can find our products on NBS Source.
Click here for NBS Source Website M Range.

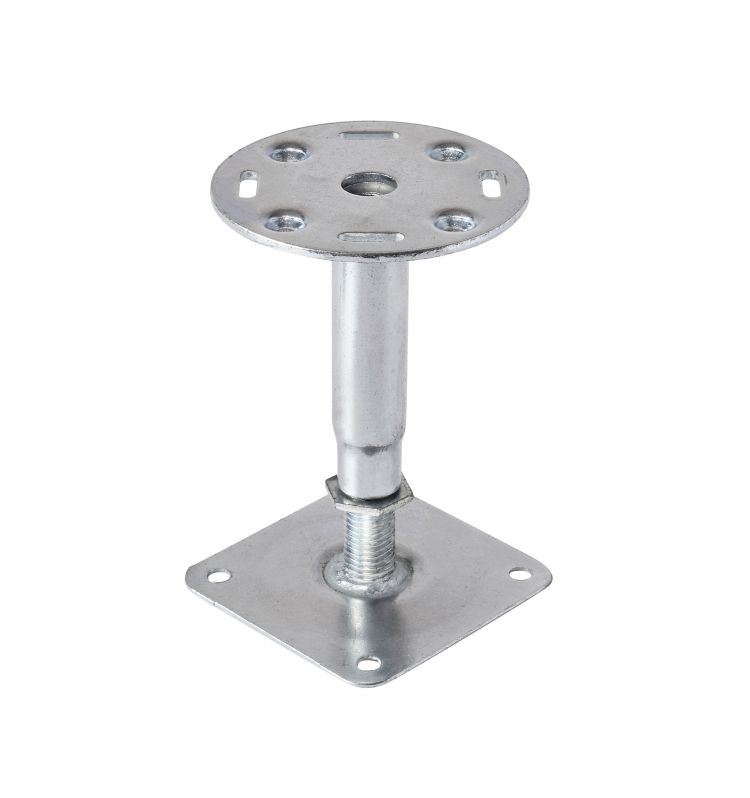

Features of a raised access flooring pedestal

  • Zinc-plated, finest quality steel material
  • Pedestal top disc - made from mild steel disc 90mm diameter. Slotted disks compatible with a screw down panel or screw down disc compatible with a screw down panel and stringer system.
  • Pedestal base - Sturdy base plate thread rolled and cut to size in house.
  • Tube length - Provides void adjustments for precise panel levelling. A range of heights available across all our ranges, we can easily cater for 26mm to 600mm heights.
  • Locking nuts made from 3mm mild steel to ensure full stability of any pedestal head.
  • Delivered to your door pre-assembled designed for efficient installation time.

For more information on range specifics please refer to the specific range datasheets.

Specification BS EN 12825
Void Ranges 50mm - 185mm
Clip in Stringer Compatible As Standard
Screw Down Stringer Compatible Upon Request
Base Size 85mm x 85mm x 1.5mm
Base Tube Size 16mm OD
Socket Head Size 22mm OD
90mm Top Disc Thickness 3mm
Locking Nut Thickness 3mm
Download datasheet
